Cooling & Heating Application for Hybrid and E-Vehicles

Scroll

Overview

Intelligent Thermal Management Solutions and components have a crucial importance for electric and hybrid vehicles as well as combustion engine cars.

We offer a variety of processes, products and materials customized to your requirements.

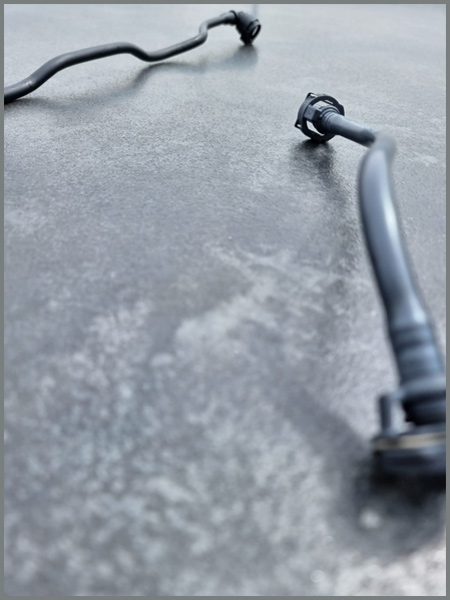

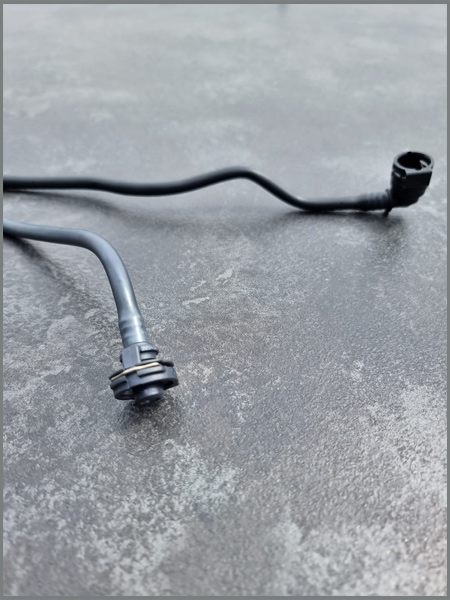

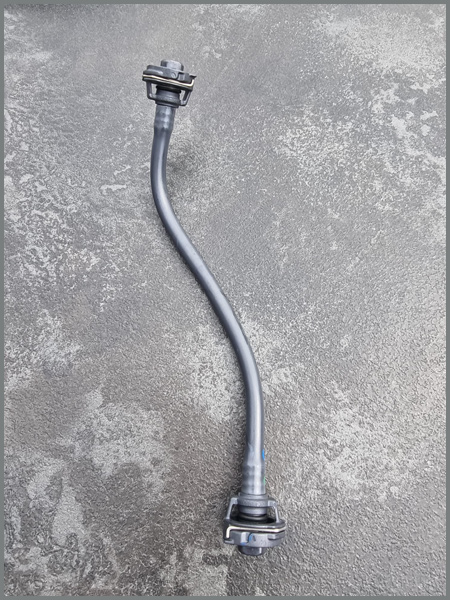

01. Thermoforming Pipes and Systems

A wide range of plastic materials according to customer specifications and goals in terms of required solution.

Thermoforming Types and Material selection

Multilayer Pipes
PA6.12/PP

Single Layer Pipes
PA6.12
PPA
PPS
PA12

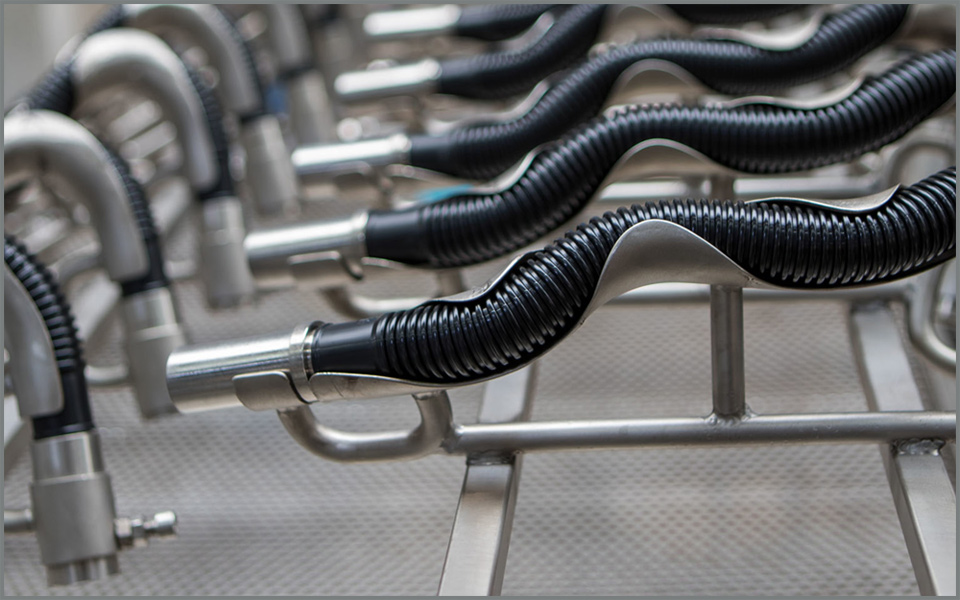

Corrugated Pipes
PA6.12
Diameter from ID 6mm up to ID 20mm.

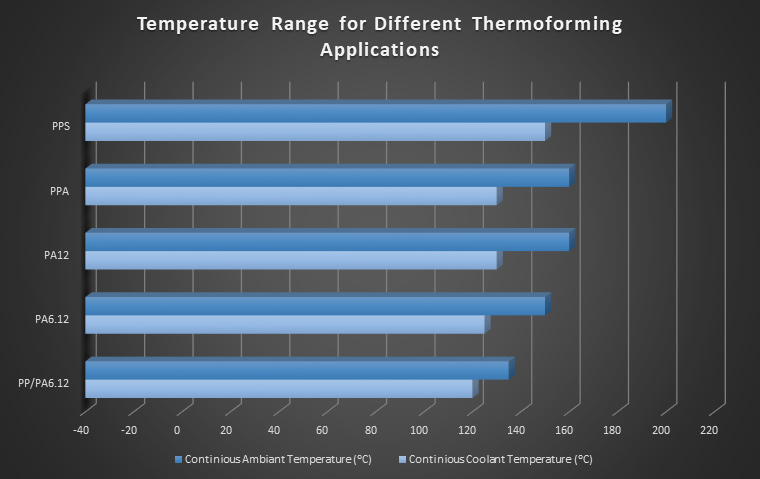

Application Temperatures of Engineering Materials

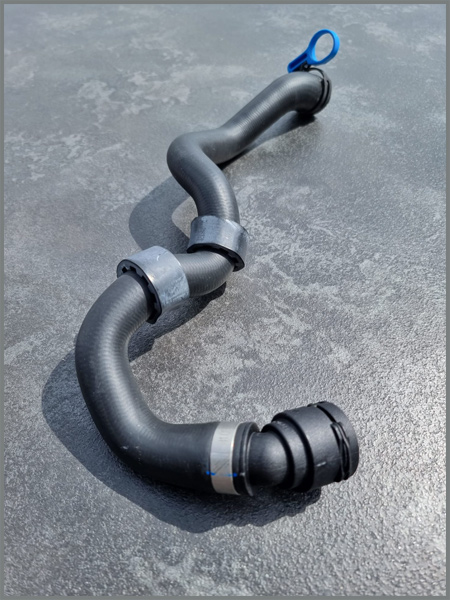

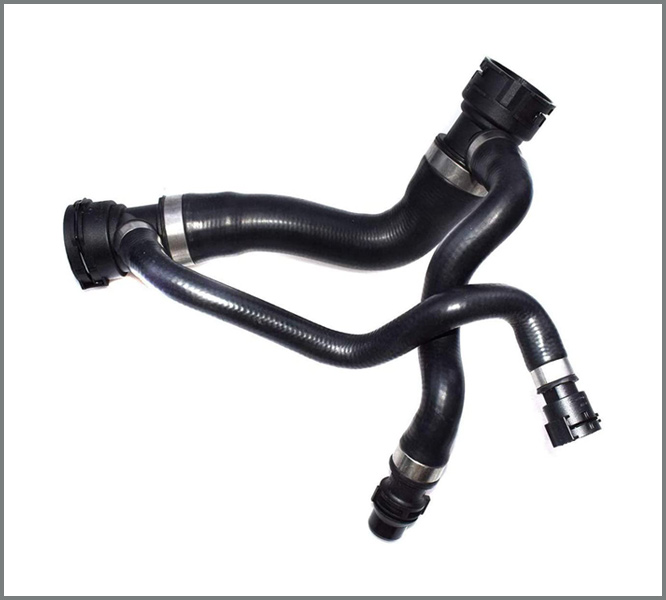

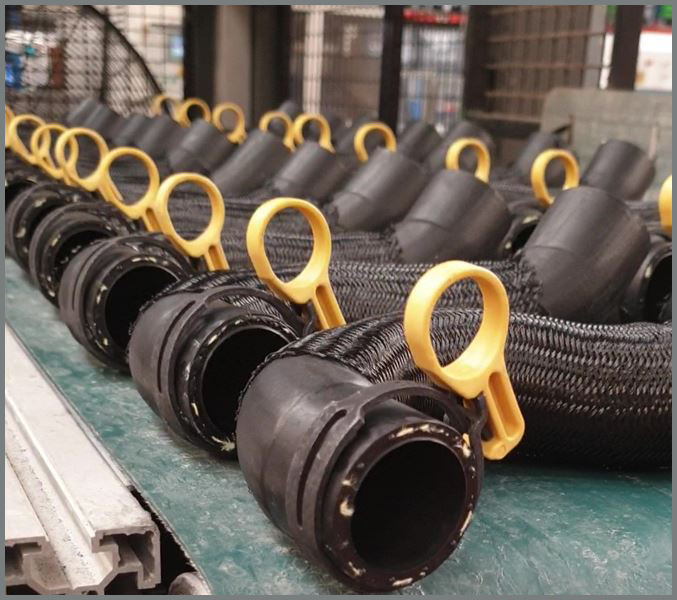

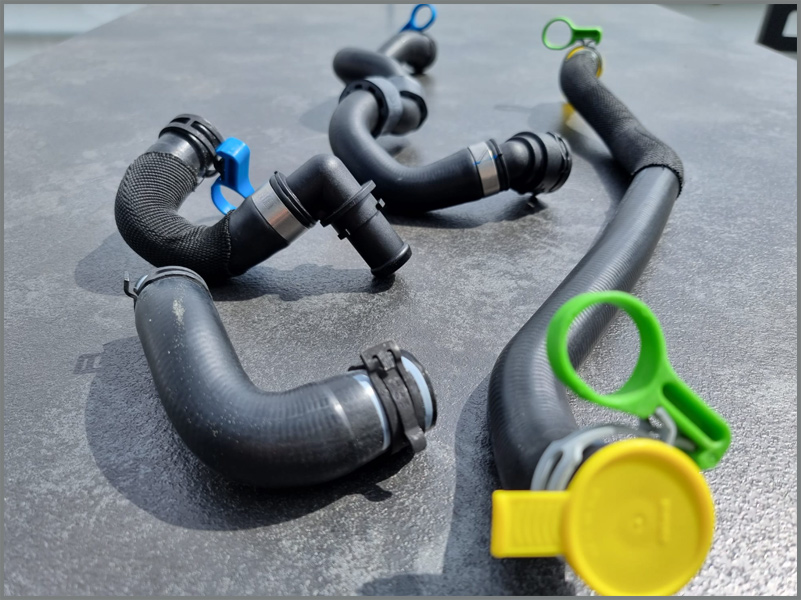

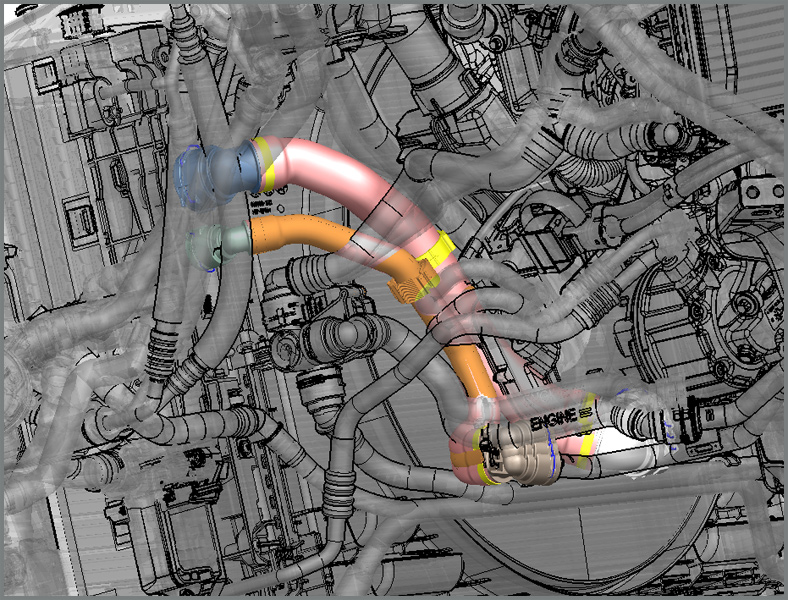

02. EPDM Hoses and Systems

Reinforced two layer preshaped hoses for engine and battery conditioning.
Diameter from 6mm up to 48mm.
Temperature range from -40°C up to 135°C.
System pressure up to 2,4 bar.

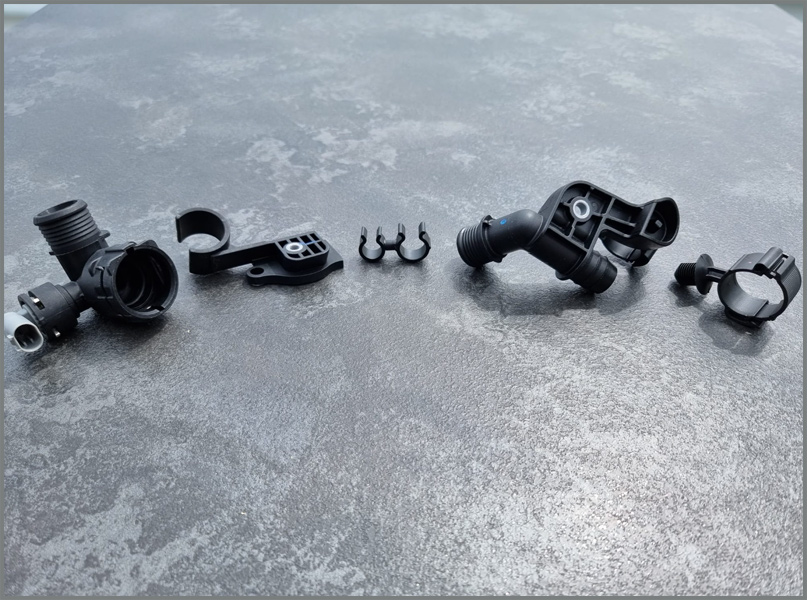

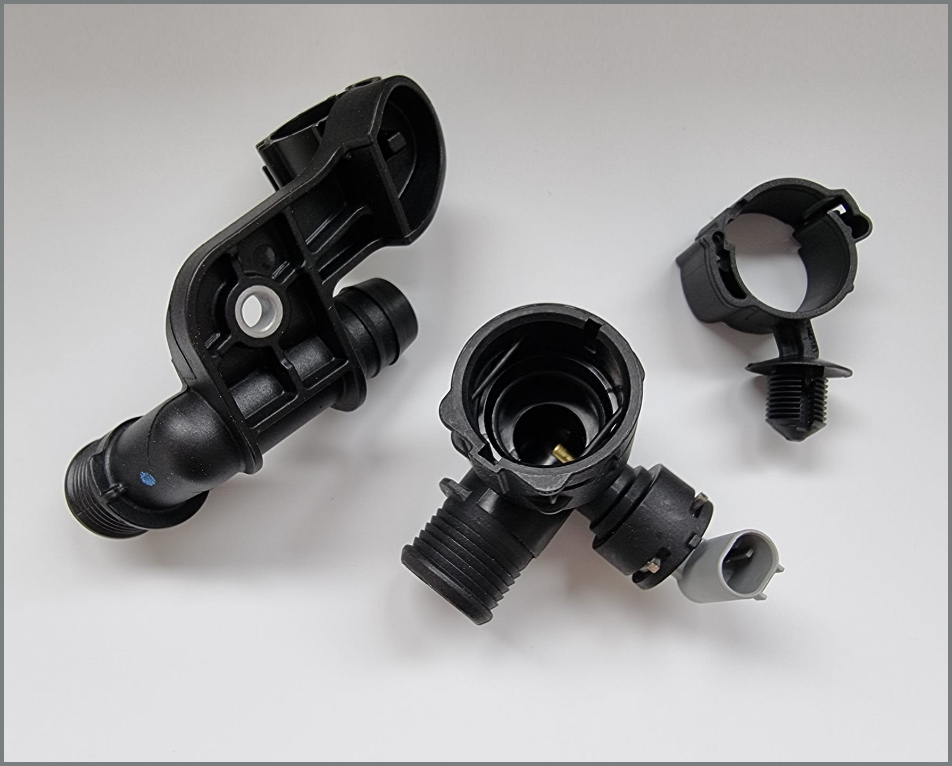

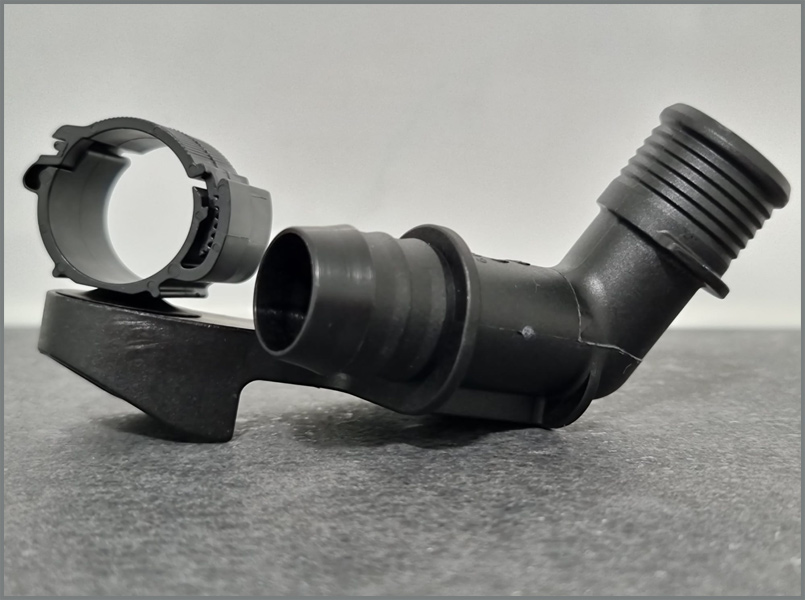

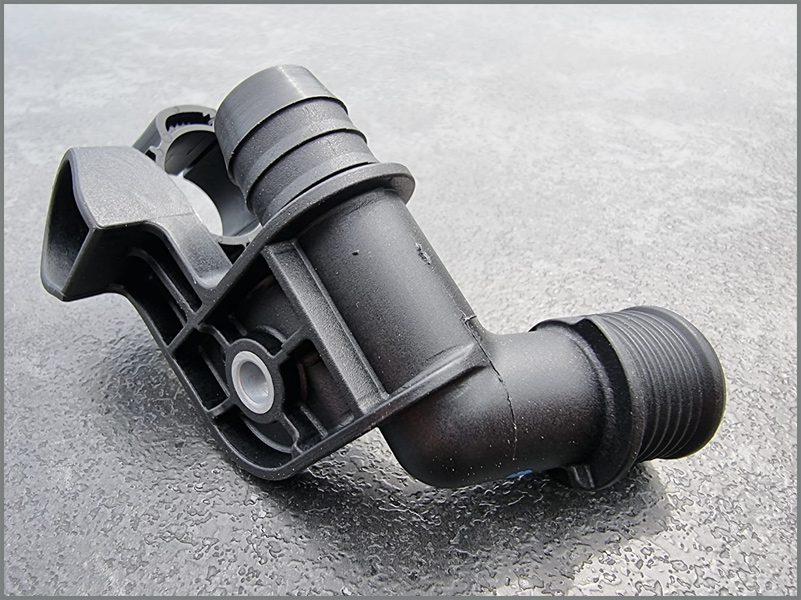

03. Injection Molded Parts

ESP-Automotive solutions for automotive fluid circulation systems cover a full range of connection needs for thermal management systems as well as air and oil lines. Moreover we also provide an extensive range of pipe holders, clips and brackets for complex assemblies and systems. We engineer our solutions to meet your needs for quick and simple assembly, safety, low cost and weight savings through responding the latest industry standards and challenges.

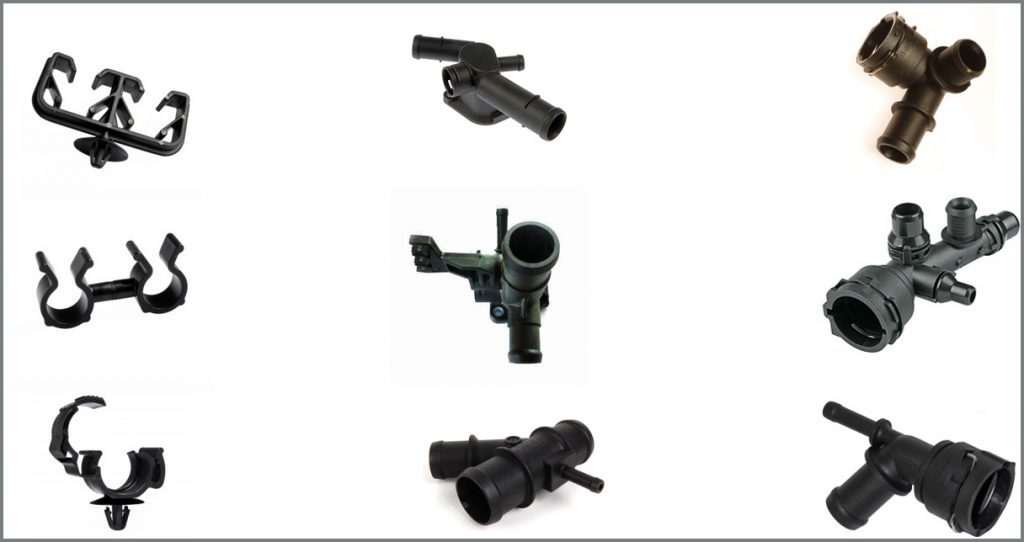

Types of injected molded parts

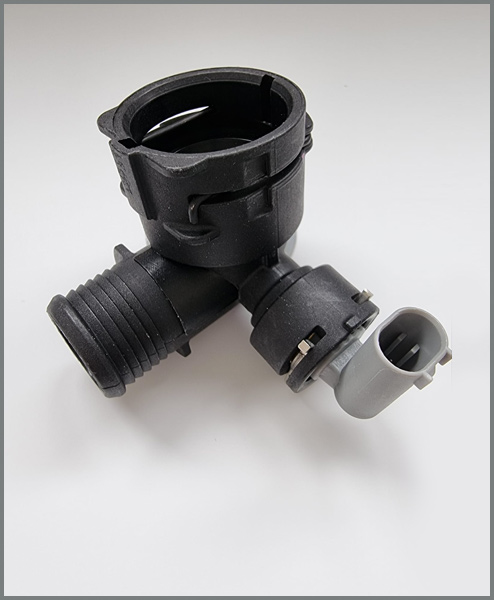

Connectors and Nozzles
Clips and Retainers
Distributors

Engineering Materials

  • PA66 GF30
  • PA6.12 GF30
  • PA12 GF30
  • PPS GF30
  • PA6-I

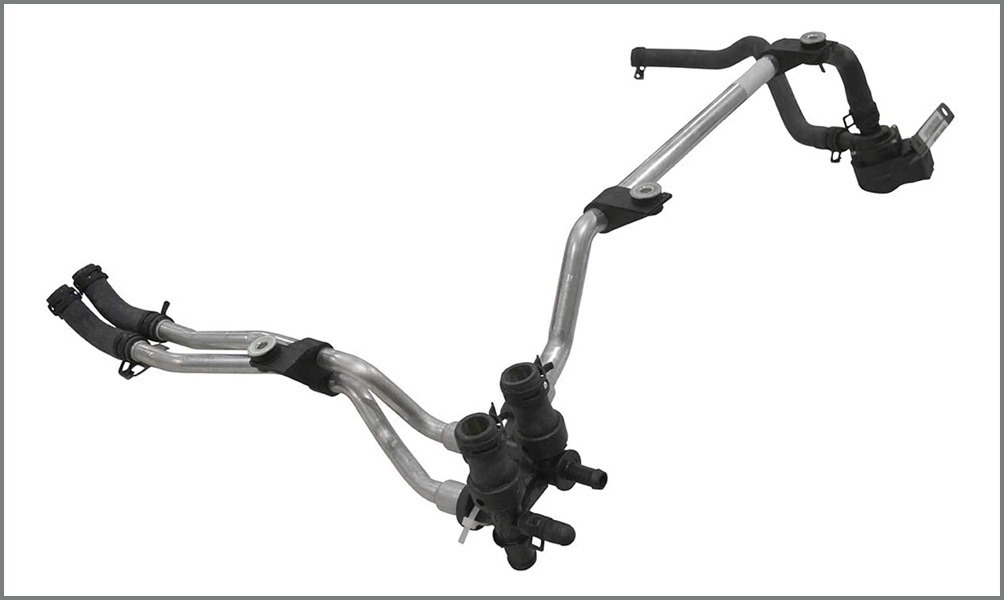

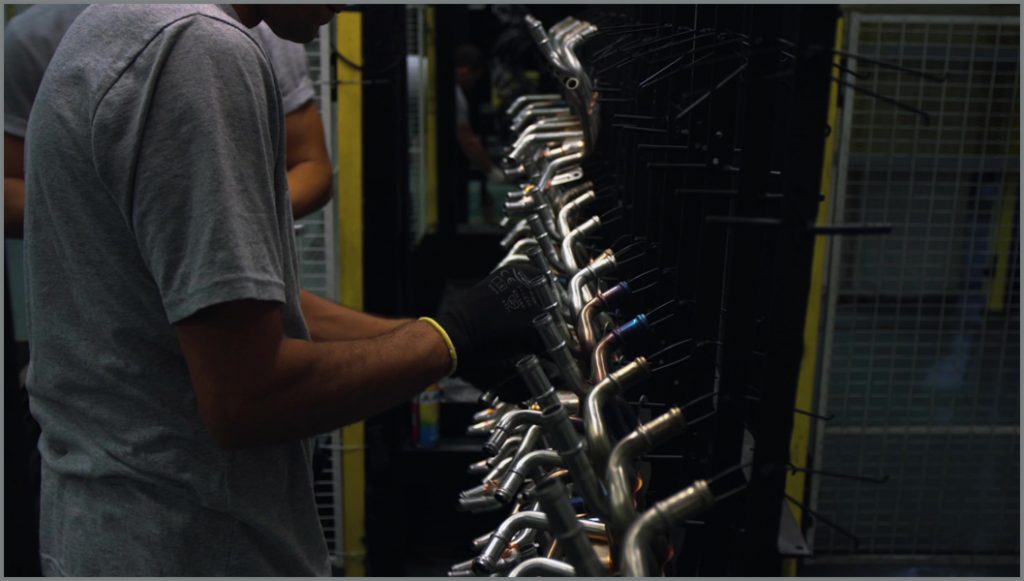

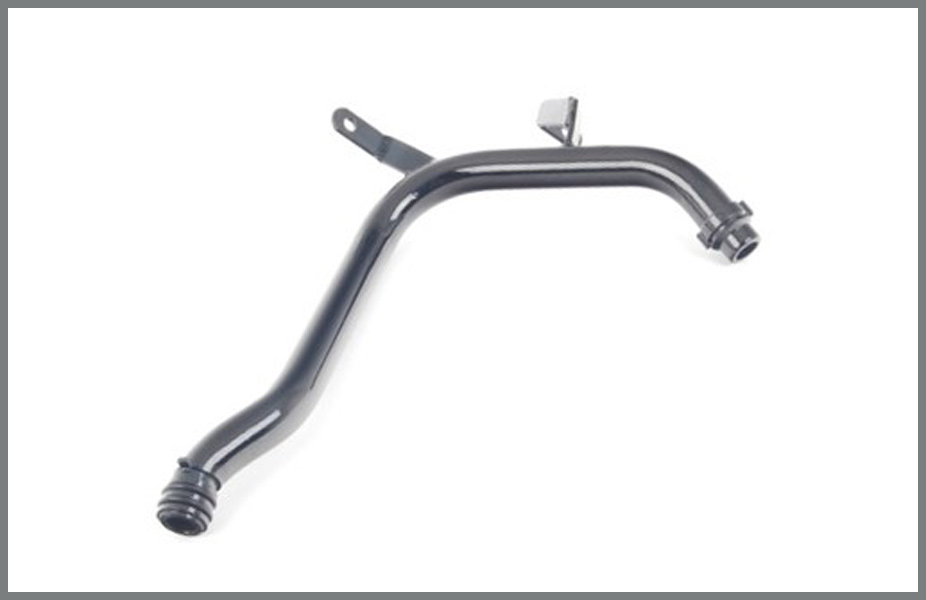

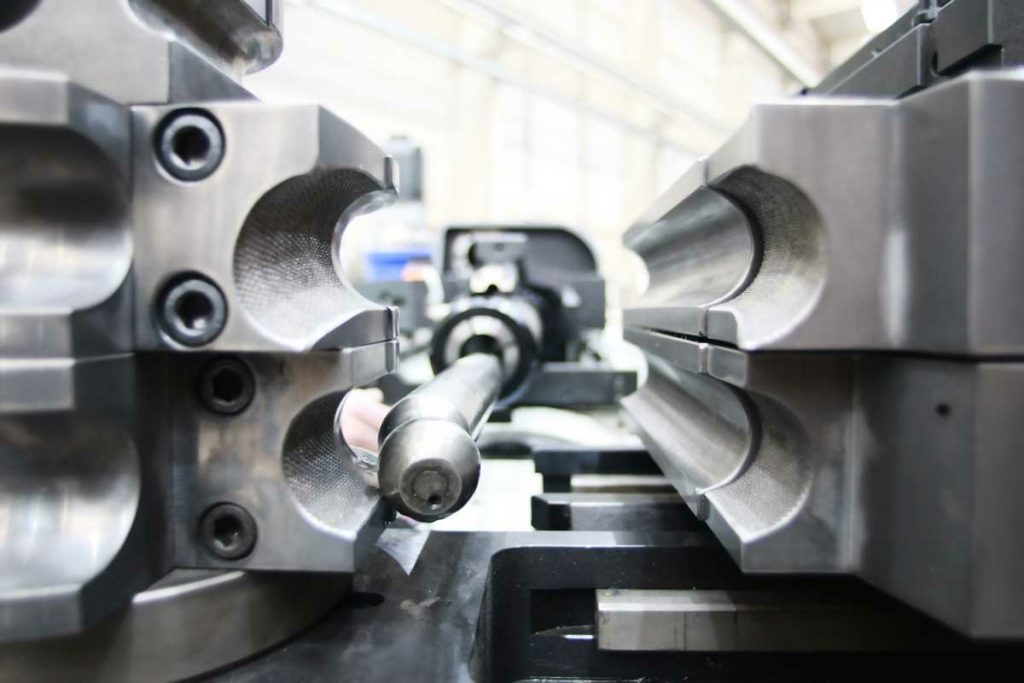

04. Metal Pipes

Design and Production of a variety of tubes with different materials according to application area, temperature and pressure. Steel, stainless steel, aluminum pipes and complex brackets.
  • Tube Production Capabilities
  • Steel Tubes up to 22mm diameter
  • Aluminum Tubes up to 25mm diameter

Welding Types

  • Brazing, Arc
  • TIG
  • MIG
  • Spot

Coating Types

  • Cathodic dip painting
  • Phosphate
  • Electrostatic
